High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions

High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions
High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions

Large Image :  High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions Get Best Price

Product Details:

Place of Origin: Beijing,China
Brand Name: Tianyihongda
Certification: type test report
Model Number: TYHD-DTU-4

Payment & Shipping Terms:

Minimum Order Quantity: 1set(3pcs)
Price: Negotiation
Packaging Details: 56*40*34cm,48 pcs /box ,standarad export box
Delivery Time: 3000 sets within 1 week
Payment Terms: Western Union, L/C, T/T
Supply Ability: 3000sets per week
Detailed Product Description
Character: High Intensity, Low Cost And Easily Installation Feature: Communication Management Module
Software: Freely Add New Corresponding Module Firmware: Adopts Microprocessor High Speed Sampling Techniques
High Light:

feeder remote terminal unit

,

dsp digital signal processor

DTU power distribution network feeder automation device is used for terminal monitoring for RMU, small switching station,can connect with master station and realize the electrical signal gathering and control from multi-lines, fault detection, fault area location, isolation and non-fault area power restore to improve power supply reliability.

DTU power distribution network feeder automation device is with a hardware platform of 32 bits of microprocessor of high-performance, is with embedded real-time operation as a software development platform, also with characters of high stability and reliability , high performance,high intensity and low cost and easily installation.

DTU provides enough communication interface( 4 technical grade RS232 Serial ports, 2 of them can be equipped as RS485 ports,2 pieces of 10M Ethernet port,1 piece of USB port),main processor adapts technical grade 32 bits of high-performance processing chip, with specialized maintenance software, also can be remotely kept maintenance by specialized network, such as each CPU module is realized by bus. Main CPU module is as master station to control the whole communication process, the gathering CPU Module is as subsequent station, the communication rates is above 9600bps. Several device constitutes Ethernet bus through inner embedded industrial grade switch to make sure data processing and data exchange with sufficient bandwidth.

The TYHD-DTU distribution automation remote terminal (hereinafter referred to as the distribution terminal) is a new generation of power distribution terminal based on the latest generation of automated remote terminal technology

Terminal capacity configuration

Single test control unit Telesignalling number ≤72
Remote control loop ≤12(open/close into one)
AC voltage ≤12
Ac current ≤36(12 loop,3 to be one loop)
DC sampling ≤2
Panel type (discrete / integrated) Telesignalling number ≤216
Remote control loop ≤36(open/close into one)
AC voltage ≤36
Ac current ≤108(36 loop,3 to be one loop)
DC sampling ≤6

High Performance Master Terminal Unit TYHD - DTU Model Communication Solutions 0

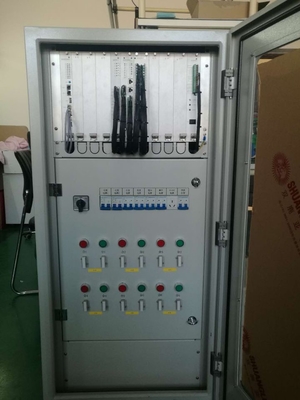

According to the user's request, we can provide different distribution terminals including box structure and wiring mode, which can be used for outdoor, indoor landing installation, or indoor wall mount installation.

There is type test report for it, test items as following:









Type Test Items



1. appearance and structure 2.function 3. electrical device performance 4.low temperature performance 5.high temperature performance 6.alternating temperature humidity7.vibrationendurance 8.incline drop test 9. electrical device life 10. static electricity and elecro-discharge immunity test 11.radio frequency electromagnetic field radiated immunity test 12.surge impact immunity test 13. power frequency magnetic field immunity test. 14. Adjacent interference test 15.short-circuit withstand impact test 16. fire hazard test 17. power consumption test 18. protection grade test 19. gripping strength test of grip structure.
