Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission

China Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission  supplier
Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission  supplier Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission  supplier

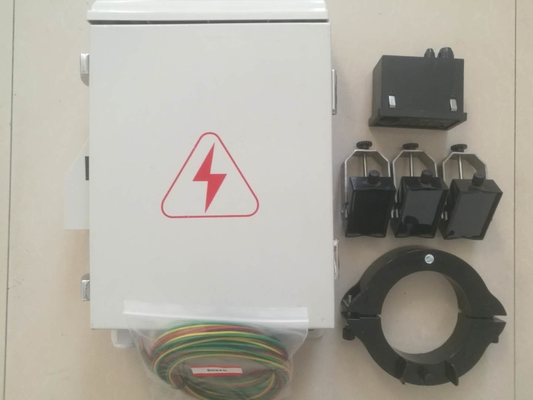

Large Image :  Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission

Product Details:

Place of Origin: China, Beijing
Brand Name: TYHD
Certification: type test report
Model Number: TYHD-AI-2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: standard export package
Delivery Time: 3-5 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 sets/month
Contact Now
Detailed Product Description
Communication Protocol: IEC870-5-101 Or IEC870-5-104 Upgrade: Easily Be Upgraded Remotely
Receive Fault Point Signal: By Wireless Status Information, Fault Information: GSM Or GPRS Transmission
Static Power Consumption: <1mW Wireless Receive Freqency: 433MHz Or 865-869MHZ
Wireless Receive Distance: ≥20m
High Light:

underground cable fault distance locator

,

underground electric cable fault locator

DTU description

1. Summary

Data Transmission Unit function is to receive wireless signal from panel indicator then to demodulate and decode,then send the signal to central station by GSM or GPRS.



2. Working principle

Date Transmission Unit is to transmit the fault signal from panel indicator which is transmitted from short-circuit fault indicator and earth fault indicator through optical fiber. DTU receive data wireless from panel indicator ,then send the fault signals to master station by GSM or GPRS after analysis and processing to realize fault detection and fault location of power distribution network .

3. Main characteristics

Wireless receive:receive fault point information from panel indicator through wireless

GSM OR GPRS send: send status and fault information to master station,requires confirm detailed requirement before order.

Main supply: powered by two roads of powered CT, back up used each other, if primary line current is not less than 10A, back-up power will not be consumed; or PT powered.

Back-up power supply:equipped with free-maintenance 5AH lithium battery. Under condition of no power for main power source, it can keep device working 5-8 years and fault information not lost and no need to complement energy.



4. Function

1. wireless receive: receive fault point signal from panel indicator by wireless

2. GSM or GPRS transmission: send status information, fault information to master station by GSM or GPRS.

3. Power supply way:PT supply or two road of CT supply, if primary current is above 10A,it can work normally.

4. communication protocol:IEC870-5-101 or IEC870-5-104

5. Remotely upgrade:device can easily be upgraded remotely



Fault indicator description

1, Summary

TYHD-2 panel type fault indicator(be called indicator for short below) is mainly used for switch gears for locally indicate short circuit fault and earth fault and also provide wireless signal output .

2, Working principle

The principle is micro-controllers with little power consumption, micro-controllers can automatically identify fault signals from short circuit indicator and earth indicator, They can display the fault signals using LED flashing lights on the spot and output the signals by wireless.The parameters can be customized by client's requirement. please contact rainbow2667 for skype ID

3, Installing methods

The appearance of the indicator :

Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission

                             FRONT VIEW

Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission

                                                                 BACK VIEW



Method of installing:

L1 connects with A phase for signal input from optical fiber

L2 connects with B phase for signal input from optical fiber

L3 connects with C phase for signal input from optical fiber

L4 connects with Earth line for signal input from optical fiber

3.1 Fault indicate function

The lights on the L1,L2,L3,and Earth buttons will flash with a an interval of 4 seconds,if the short circuit fault or earth fault occur.This can be reset automatically according to the time delay set before delivery from the factory or manually reset by pressing button of “Reset/Test”.the status of low battery capacity of the indicator can be uploaded by wireless,in the meantime, The indicator will flash for low battery voltage(with 4 seconds of interval).

3.2 Reset/Test function



3.2.1 Reset: press lightly the “Reset/Test” button slightly, it will reset after all lights on in indicator

3.2.2 Self-checking:

press ““Reset/Test” button, press on L1 and L2 in turn, then let go, after all lights are on at mean time once, the corresponding address lights is on. In 10s, corresponding address lights are on again, then self-checking finished.(indicator current address refer to label number in the back).address is corresponding to L1,L2,L3,E lights by BCD code, instructions is as following table:

Address black point means the corresponding LED is on
L1(1) L2(2) L3(4) E(8)
1
2
3
4
5
6
7
8

3.2.3 L1,L2,Wireless function self-checking

press “Reset/Test” button, press on L1 and L2 and L3 in turn, then let go, the indicator will send wireless status message to upper computer, the “ battery low voltage” light will flash fast 3 times to indicate, it tells test finished. If transmission is failed, the test status will exit automatically in 1 minute. Operator also can press slightly on “Reset/Test” button to reset indicator and exit this status.

3.2.4 indicator address configure

When install the indicator, the panel indicator address should not be the same in the same RMU or switching station, if the address is same, it will result in the information transmission mixed error.each indicator labels its current address(when installed, its address also can be checked by the way of self-checking. If need to modify indicator address,please follow the following steps:press “Reset/Test” button, press on L1 and L2,L3,Earth fault lights in turn, then let go,light of “low battery voltage” flash(with an interval of 1s) and change to ready- setting state(automatically exit in 20s), press again“Reset/Test” button, lights of L1,L2,L3,Earth fault will display address (1-8)by the address sequence of BCD code, when it displays the address which requires to be configured, then let go at once,the expected address will flashing clockwise with the light of “low battery voltage”, at this time, press the button again and save this address. The operator can refer to the self-checking steps mentioned in 2.2 to check if the address written is right; if configuration is not right or cancel this configuration, please not save, the configuration status will exit automatically in 20s.

4. Function

4.1 Show short circuit fault and earth fault locally.

4.2 Self-reset ,self-reset time can be set before delivery from factory (The default value is 12 hours).

4.3 Reset manully /self-test manually is available .

4.4 address of the indicators can be configured



  • Performance index

5.1 The distance of fiber communication:

Typical value:5m;Max:10m

5.2 Ambient temperature:-35℃~70℃

5.3 Action times :more than 2000

5.4 Indicator power supply mode :built-in 3.6V/2Ah lithium cell.

5.5 Battery can be changed.

5.6 Life: continuous working for more than 10 years.

5.7 net weight :less than 0.5kg

5.8 Static power consumption :less than 12uA



Part 2 :The cable indicator of short circuit fault

1.Summary

The TYHD-2 cable indicator is suitable for the cable 35kV system (including bellow 35kV system).It can only judge short-circuit, without locally indicating function. When short-circuit happened in cable,It can help line finder find the fault quickly .shorten power-off duration,improve the reliability of power supply,The picture of product is below:


Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission

cable short circuit fault indicator

2. Working principle



Using clip-on line structure of fault detector as sensor of measuring load current. The intelligent controller control as the core with little power consumption ,When a circuit has a short circuit fault,The fault detector automatically recognize fault current characteristics to judge intelligently. In the meantime. the action signal will be transmitted to the panel indicator installed locally by fiber and locally indicating,then the panel indicator send the wireless signal to DTU to realize the remote transmission of fault signal

3,Installing methods



Clip the indicator on the line as shown in the pictures1.2.3, rotate the screws clockwise to fix it and tighten the fault detector, connect the fault detector and panel indicator through short-distance plastics optical fiber; make sure to insert the optical fiber to the other end and tighten the nut. The length of the optical fiber should be less than 10m,The shorter the distance ,the higher the reliability .optical fiber cross-section is cut flat with a paper cutter, which is beneficial to the transmission of fiber signal

After the test completely cover the rubber cover,in order to avoid abnormal indicator accused by long-term light leakage

4,Function

4.1 Install and disassemble easily, be suitable for Cable lines with an external diameter of less than 40 mm.

4.2 detect short circuit

4.3 epoxy resin pouring,whole-sealed structure, suitable to run outdoors for a long time.

4.4The line load current can be detected automatically, no need to configure alarm parameters.

4.5 Inhibiting the switch-off surge current automatically.

4.6Fiber data communication:

Indicating locally the fault alarm signal transmitting from fault indicator to panel indicator(if no panel indicator, this function is not available).

4.7Taking electricity from cable current, equipped with built-in storage lithium battery, life is more than 15 years.

5.Performance index



5.1Environment index:

environment temperature:(-40~70)℃ maximum daily temperature difference is 25℃.

relative humidity:5~95%

altitude height:<2000m

5.2 system specification

cable outer diameter: 10~40mm

system voltage:≤35kV

system frequency:50Hz

maximum over-current protection time delay adaptable :<4S

5.3 main technical performance and parameters

working power:taking electricity from line sensing current, one backup 3.6V/2Ah lithium battery is equipped for supply.

static power consumption:3.6V power supply, <5uA

designed life:10 years above

optical fiber communication distance:less than 10m

optical fiber data rate:9600bps

long endurance current:650A

weight:<0.5kg

cable earthed fault indicator



Summary

TYHD-2 cable earthed fault indicator is applied to cable system below 35KV, with function of zero-sequence earthed fault detection and fault signal remote transmission function. the panel indicator displays and remotely transmitted the detected fault signal from earthed fault indicator transmitted by optical fiber,when earth fault happened in cable. It can help line finder find the fault location quickly .shorten power-off time,improve the reliability of power supply. The picture of product is below:

Communicable Electrical Underground Cable Fault Indicators Wireless With GSM / GPRS Siganals Transmission

                              earthed fault detector

working principle

Using specially designed open zero-sequence CT as sensor of measuring zero-sequence current, micro-power consumption intelligent controlling chip is as core. When earth fault happen, earthed detector will automatically distinguish fault current characteristics to judge earth fault intelligently, then transmit the data to panel indicator to display by optical fiber, and the panel indicator will send wireless signal to DTU to realize the remote transmitting for fault signal.

4. functions and characteristics

4.1 Install and uninstall simply.adaptable to detect zero-sequence current in three-phase cable with outer diameter below 110mm.



4.2 Epoxy resin casting,adaptable to run outside in a long term

4.3 detect earthed fault

  • Used for low resistance grounding system:zero-sequence current starting value adjusted range is 10-200A before delivery,default value is 30A;delay time range can be adjusted as 50mS~60S before delivery, default value is 200ms.when zero-sequence current is above current starting value and lasting time is above delay setting time then it can be judged as fault. The parameters can’t be changed at site, need to clarify when make order.
  • Used for low current earthed system: detect special signal and meet fault judgement condition then judged as earthed fault.

4.4 optical fiber communication

transmit fault signal from detector to panel indicator

4.5 Equipped with a Built-in a lithium battery, life is above 8 years



5. Performance index

5.1 Environmental index

environmental temperature:(-40~70)℃ maximum daily temperature difference is 25℃.

relative humidity:5~95%

altitude height:<2000m

5.2 system specification

system frequency:50Hz

system voltage:≤35kV

cable outer diameter:<110mm

5.3 main technical performance and parameters

working power: 3.6V/2Ah lithium battery is equipped for supply;

static power consumption:3.6V power supply<5uA

long endurance current:500A

short endurance current:2000A/2S

optical fiber communication distance:10m

optical fiber data rate:9600bps

weight:<1.1kg
