|Nominal Voltage:||12kV||Nominal Current:||100A-200A|
|Nominal Frequency:||50Hz||Power Frequency Withstand Voltage:||42kV|
|Wet Power Frequency Withstand Voltage:||32K To Earth,35kV For Fracture|
high voltage fuse cutout,
load break cutout

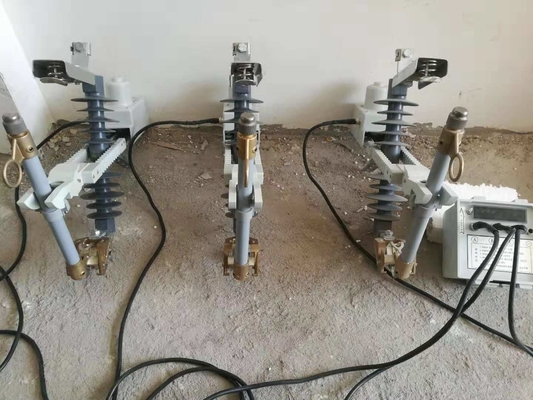

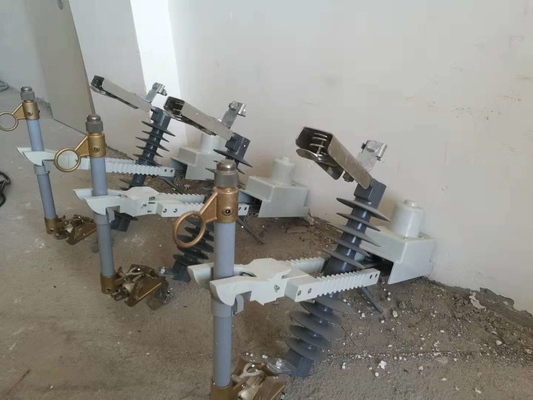

12KV Drop-out Fuse cut-out switch controlled wirelessly by GPRS with smart remote meter reading system
This kind of drop-out fuse cut-out switch is designed to be controlled remotely, the operators can use remote controller or ERP Systerm to operate in terminal.
“Intelligent Drop-out Fuse cut-out” is an initial invention of product in China. It complements the empty status in domestic and ovserseas market in drop-out fuse field and got the patent certificate issued by China national patent bureau.the product is tested and qualified by “China National Electrical Products Quality Supervision and Inspection Center”,awarded honor of“China famous brand”, “China national excellent quality of products & credit Guaranteed brand”“honor list of products issued by national quality inspection center” “First choice products contented for the national marketing users” etc. ,our company is also awarded as China important development Unit of Medium-Light products quality gurantee center.
There are two kinds of Drop-out Fuse,one is long-distance Hand operation Drop-out Fuse and the other is Remote Control Drop-out Fuse.
long-distance Hand operation Drop-out Fuse:
It can be Operated within 20 meters in site .operation is safe, easy and convinient,if only press the button on the remote controller in hand,the switch-on and switch-off will be realized. When fuse is overloaded and fused, the fusing pipe will drop by itself and form an obvious fracture
Remote Control Drop-out Fuse:
It remotely control mechanical hand to make switch-on-off , can be equiped with smart remote meter reading system to realize prepayment. It is designed with an operation controller with a GPRS acquisition terminal, computer in control center transmit the command signal to GPRS acquisition terminal by ERP system, the operation controller will control mechanical hand to make switch-on-off according to command signal from GPRS acquisition terminal and realize long-distance switch-on-off automatically.
Eight highlight features with long-distance Hand operation Drop-out Fuse and Remote Control Drop-out Fuse:
1. Safety.realize zero-touch between operator and high pressure materials.
2.Intelligent.use remote controller or ERP Systerm to operate in terminal.
3.innovative.three-phase can be switched off at one time, solve arcing danger when switch off, is first successful invention in China.
4. reliability. Without influenced by whether,realize 24-hour operation easily.
5. preposition.Whentransformer and power distribution system is about to be in risk, switch-off can be operated remotely ahead of time to avoid a large area of electrical facility being destroied.
6. Easy operation. Avoid to operate in the air, lower the labor strenth and operation difficulty and reduce the casualty rate maximally.
7. Anti-theft. There is substation anti-theft self-lock function.when use long-distance controller or remote control to switch on, fuse three phases will locked automatically by themselves, the theft will have no way to break off high volatage the substation is connecting,so it solved the problem of stealing substation in suburb,coutryside and mountain area. Which effectively protect electrical facility safety, national property safty and normal power supply.
8. Convinient. Operate switch-on-off easily and convinient, switch-on is not deviation, switch-off is more flexible, drop is without obstacle, contact terminal is not easy to damage, power conduction contact is more stable.
|Power Frequency withstand voltage||42kV|
|Wet Power Frequency withstand voltage||32K to earth,35kV for fracture|
|impulse withstand voltage||70K to earth,v85kV for fracture|
|Control Distance (control by wireless)||20m|
|Remote control distance (remote control)||coverage area by GPRS|
There is type test report for it, test items as following:
Type Test Items
|1. appearance and structure 2.function 3. electrical device performance 4.low temperature performance 5.high temperature performance 6.alternating temperature humidity7.vibrationendurance 8.incline drop test 9. electrical device life 10. static electricity and elecro-discharge immunity test 11.radio frequency electromagnetic field radiated immunity test 12.surge impact immunity test 13. power frequency magnetic field immunity test. 14. Adjacent interference test 15.short-circuit withstand impact test 16. fire hazard test 17. power consumption test 18. protection grade test 19. gripping strength test of grip structure.|
